SKYWRITER HPX TOUR 5W

The most powerful Skywriter series ever is extremely versatile, tackling the rigors of touring or fixed in a venue with ease

Guaranteed Visible Power
5.1 W
Color Output
Full Color
Max Scanner Speed
30kpps @8°
Max Scan Angle
45 °

Included PowerCON, Keys, Beam Block Foil, User Manual, User Training DVD

Availability In stock, ready to ship

DELIVERING ANYWHERE
IN THE WORLD
1-888-LASER-08
toll free
Need help with the tech terms?

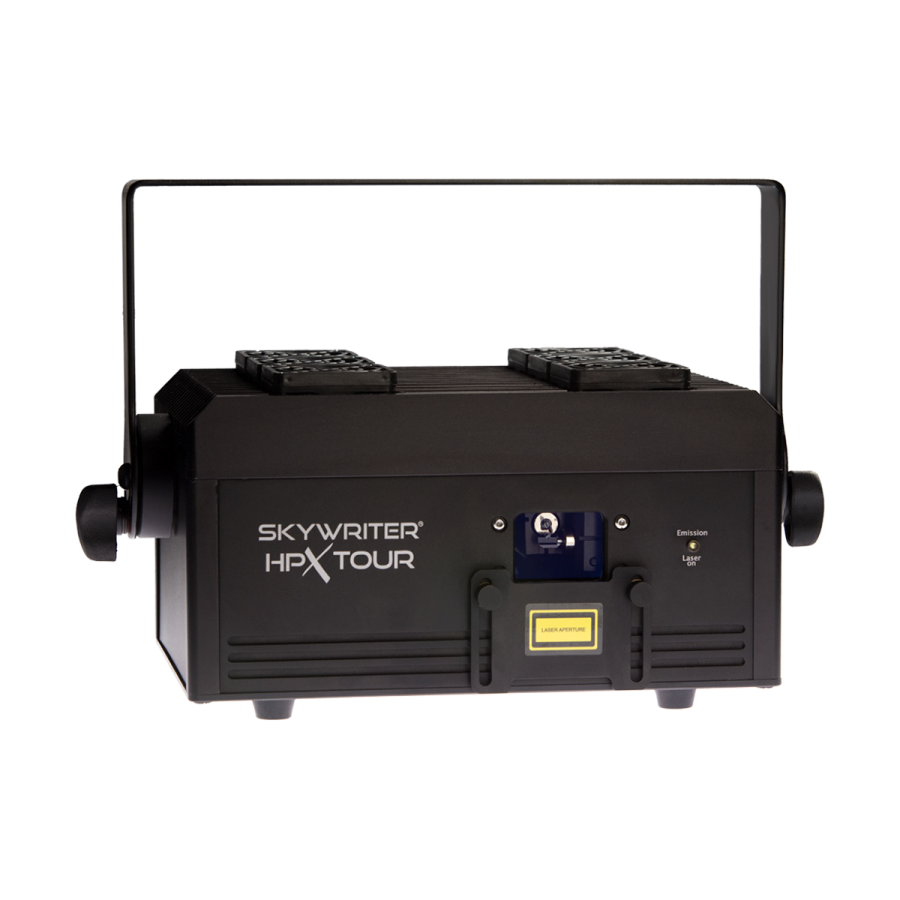

SKYWRITER HPX TOUR 5W

With 5W of RGB full-color laser effects, the HPX Tour can easily fill venues holding up to 5,000 guests, projecting stunning graphics hundreds of feet away

The most powerful Skywriter model ever is also our most rugged, so the HPX Tour 5W smoothly handles the rigors of the road and makes for a spectacular permanently installed lighting fixture. Boasting 5000 mW of full RGB laser power, the Skywriter Tour 5W easily produces bright and attention-grabbing effects in venues holding up to 5,000 guests. Combining that much power with its precision 30K graphics scanners, the HPX Tour 5W can also produce enormous image projections up to 300 feet away at sizes up to 100 feet tall. You can produce the exact effect you want thanks to DMX and ILDA control, and its advanced color mixing technology gets you the exact colors needed for your setting. Efficient, robust and compact, the HPX Tour can elevate your lighting rigs and elevate your business

  • Ideal for medium-to-large venues, touring acts and production companies
  • Sealed optical deck for resistance to water, wind and dust
  • Six external fans keep the HPX Tour running efficiently
  • Easily invert X-Axis or Y-Axis effects with the flick of a switch
  • Use the discounted Quickshow XL control software bundle to create custom designs and text
  • ILDA and DMX input and output to easily link units together
  • Precise and crisp low-divergence beams create beautiful animated and text effects
  • Comes ready to tour with a rugged road case
  • Produces more than 1,000 colors with additive analog RGB color mixing (ILDA)
  • 26-point quality inspection before shipping
  • Eligible for the X-Laser EZ Variance Kit
  • Certified to comply with U.S. FDA standards as well as IEC, UL, ETC, CSA and ROHS guidelines
  • No-hassle 1-year warranty (6-mo. warranty on diodes)

Tech Specs

Need a comprehensive view?
Toggle the series comparison chart
Configuration info
Manufacturer
Series SKYWRITER HPX SERIES
Name SKYWRITER HPX TOUR 5W
SKU
BEAM SPECS
Red Module
800 mW 638 nm
Green Module
1.7 W 520nm
Blue Module
2.6 W 450nm
Manufacturer Stated Max Power 5.1W
Guaranteed Visible Power 5.1W
Full Angle Beam Divergence 1.5mrad
Beam Diameter 4mm
Color Output Full Color
Laser Source Diode
Laser Class 4
LASER RADIATION
AVOID EYE OR SKIN EXPOSURE TO DIRECT
OR SCATTERED RADIATION
SCANNER SPECS
Scanner Type Galvo
Max Scanner Speed [email protected]°
Max Scan Angle 45°
GENERAL SPECS
Operation Modes DMX, ILDA
Power Supply 150W PowerCON input 5x20mm 250V 6.3A fast-acting fuse
Power Consumption 100W
Width 9.25in
Height 10.25in
Depth 15in
Accessories PowerCON, Keys, Beam Block Foil, User Manual, User Training DVD
Compare every laser we offer in one place.
Click to download or print the PDF now!

COMPARISON CHART OF 00 SKYWRITER HPX SERIES

Model Price
SKYWRITER HPX 2W
18.85
2W
2W
500mW
500mW
1W
638nm
520nm
445/447nm
4mm
4mm
4mm
1mrad
1mrad
1mrad
Full Color
[email protected]°
45°
D, I
$2,999.00
SKYWRITER HPX TOUR 5W
27.26
5.1W
5.1W
800mW
1.7W
2.6W
638nm
520nm
450nm
4mm
4mm
4mm
1.5mrad
1.5mrad
1.5mrad
Full Color
[email protected]°
45°
D, I
$4,989.00
* Operation modes :
  • S : Stand-Alone
  • M : Music
  • D : DMX
  • I : ILDA
  • L : LAN
  • SD : SD-card
  • WD : Wireless DMX
  • T : Text Mode
  • C : Clock Mode
  • LCD : Rear Panel LCD Display
  • A : ArtNET
  • FB4 : Pangolin FB-MAX Ethernet
Intensity Over Distance
Laser Module Power

Explore more options from the SKYWRITER HPX SERIES
