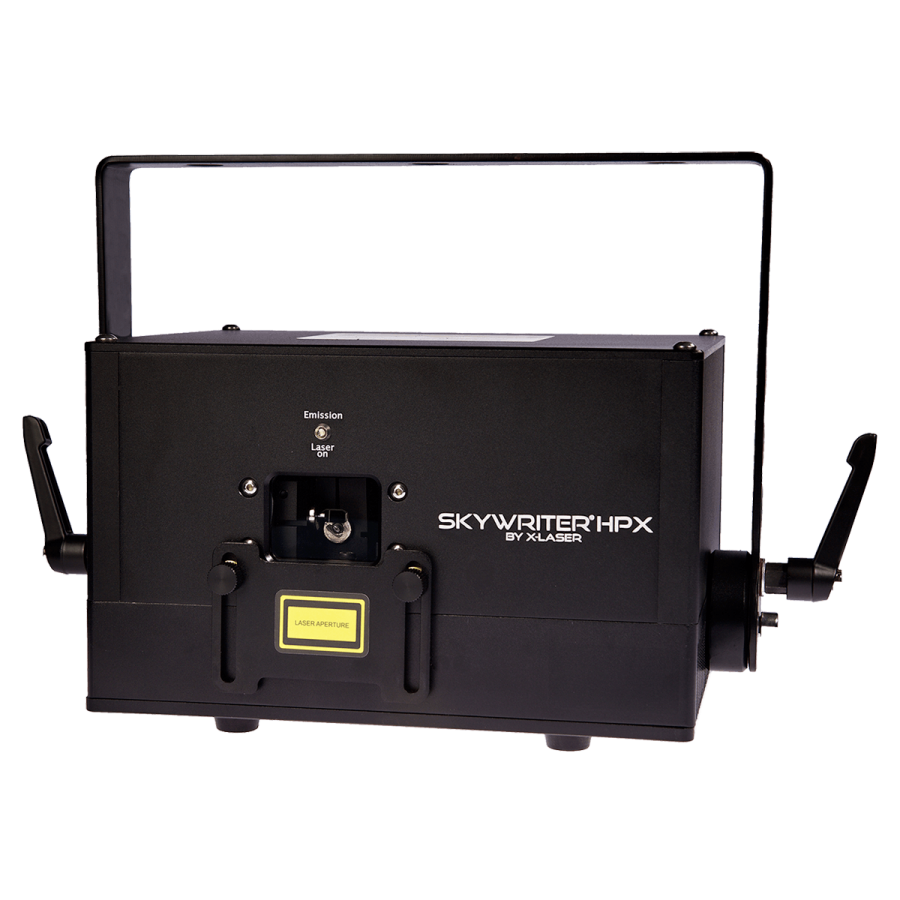

SKYWRITER HPX 2W

The Skywriter HPX is the professional multitool of the X-laser arsenal, ranging from intense beam shows to precise graphics

Guaranteed Visible Power
2 W
Color Output
Full Color
Max Scanner Speed
30kpps @8°
Max Scan Angle
45 °

Included PowerCON, Keys, Beam Block Foil, User Manual, User Training DVD, Remote E-Stop Plug

Availability In stock, ready to ship

DELIVERING ANYWHERE
IN THE WORLD
1-888-LASER-08
toll free
Need help with the tech terms?

SKYWRITER HPX 2W

The Skywriter HPX is X-Laser’s next-generation professional laser system.

The Skywriter HPX is X-Laser’s next-generation professional laser system. The HPX model was designed to seamlessly transition from creating thick, high-impact beam shows one night to projecting crisp graphics the next. As X-Laser’s version of the multitool, the HPX seamlessly blends efficient power with a solid, compact fixture to create a perfect option for rental and install applications. With its sealed optics that help reduce maintenance intervals, deep DMX control and smart diode technology, the HPX is perfect for creating awesome effects for shows up to 2,000 guests.



  • Sealed optical deck and rugged chassis reduce maintenance intervals, even during road use
  • Dramatic, thick beams create high-impact laser shows while well-matched colors create clean graphic projections
  • 1,000+ vivid laser colors
  • Best-in-class color mixing technology
  • ILDA-standard 30,000PPS (30K) precise graphics scanners
  • Eligible for the X-Laser EZ Variance Kit and meets all United States safety and quality standards
  • Rugged and compact anodized aluminum housing
  • Control modes: ILDA, DMX, Auto mode via DMX
  • X-Laser no-hassle warranty eligible (6 months for diodes, 1 year mechanical)
  • Certified to comply with U.S. FDA standards as well as IEC, UL, ETC, CSA and ROHS guidelines
  • Includes plastic molded road case with custom foam

SKYWRITER HPX 2W OPTIONS & UPGRADES These may be added during checkout

Additional Options

Tech Specs

Need a comprehensive view?
Toggle the series comparison chart
Configuration info
Manufacturer
Series SKYWRITER HPX SERIES
Name SKYWRITER HPX 2W
SKU
BEAM SPECS
Red Module
500 mW 638 nm
Green Module
500 mW 520nm
Blue Module
1 W 445/447nm
Manufacturer Stated Max Power 2000
Guaranteed Visible Power 2W
Full Angle Beam Divergence 1mrad
Beam Diameter 4mm
Color Output Full Color
Laser Source Diode
Laser Class 4
LASER RADIATION
AVOID EYE OR SKIN EXPOSURE TO DIRECT
OR SCATTERED RADIATION
SCANNER SPECS
Scanner Type Galvo
Max Scanner Speed [email protected]°
Max Scan Angle 45°
GENERAL SPECS
Operation Modes DMX, ILDA
Power Supply 150W PowerCON compatible in/out, 5x20mm 250V 6.3A fast-acting fuse
Power Consumption 85W
Width 15in
Height 9in
Depth 12in
Accessories PowerCON, Keys, Beam Block Foil, User Manual, User Training DVD, Remote E-Stop Plug
Compare every laser we offer in one place.
Click to download or print the PDF now!

COMPARISON CHART OF SKYWRITER HPX SERIES

Model Price
SKYWRITER HPX 2W
18.85
2W
2W
500mW
500mW
1W
638nm
520nm
445/447nm
4mm
4mm
4mm
1mrad
1mrad
1mrad
Full Color
[email protected]°
45°
D, I
$1,990.00
Skywriter HPX M-2
18.85
2W
2W
500mW
500mW
1W
638nm
520nm
445/447nm
4mm
4mm
4mm
1mrad
1mrad
1mrad
Full Color
[email protected]°
45°
I
$2,480.00
* Operation modes :
  • ILDA over LAN : ILDA over LAN
  • Ethernet : Ethernet
  • S : Stand-Alone
  • M : Music
  • D : DMX
  • I : ILDA
  • L : LAN
  • SD : SD-card
  • WD : Wireless DMX
  • T : Text Mode
  • C : Clock Mode
  • LCD : Rear Panel LCD Display
  • A : ArtNET
  • FB4 : Pangolin FB-MAX Ethernet
Intensity Over Distance
Laser Module Power
Intensity Over Distance
Laser Module Power
