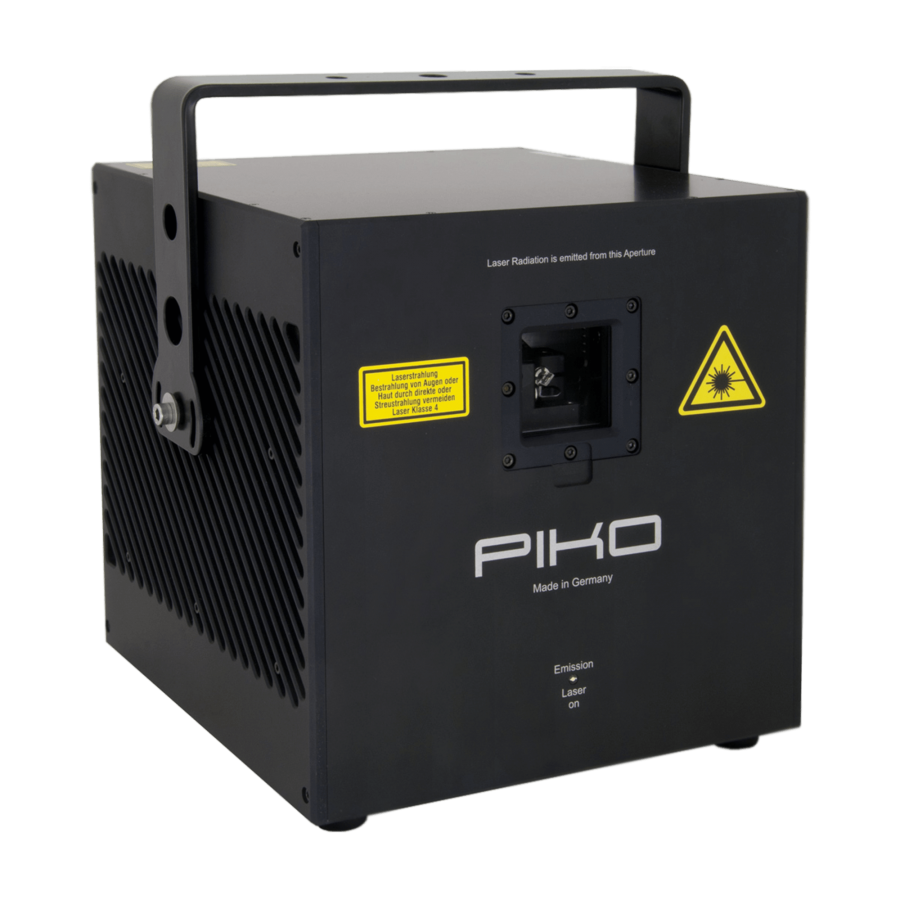

PIKO RGB 11W

The Piko RGB 11W is an extremely powerful RGB laser projector compeletely equipped with diodes and a guaranteed power of 11W.

Guaranteed Visible Power
10.8 W
Color Output
Full Color
Max Scanner Speed
45kpps @8°
Max Scan Angle
60 °

Included Power Cable, Manual, Key, Patch Cable; Optional: Detachable Remote Control Pad

Availability In stock, ready to ship

DELIVERING ANYWHERE
IN THE WORLD
888.769.5667 x3
toll free
Need help with the tech terms?
OPTIONAL UPGRADES AVAILABLE
$16,990.00 ADD TO CART

PIKO RGB 11W

The RTI Piko devices are very compact laser systems in a sealed housing according to IP54. For that, they are also suitable for mobile applications or the rental business.

The first Piko laser system that is built as a diode-only solution! The new RTI Piko RGB 11W comes with RTI diode modules Made in Germany (2.6W/638nm, 3.0W/520nm, 6.5W/450nm). The 638nm diodes ensure a brilliant and ultra bright red. The system has a guaranteed output power of 11'000mW - full-color RGB!

Advantages of the Piko:

  • a low divergence (<1.0mrad)
  • a great linear color fading behavior
  • accurate color balancing

The Piko projectors are very compact systems in a sealed housing according to IP54. For that, they are also suitable for mobile applications or the rental business.

The Piko RGB 11W Pure Diode comes with Galvos with a scan speed of up to [email protected]°ILDA*.

Standard control of this laser light system is through ILDA and it comes with an advanced mainboard control via a browser interface. It is possible to access the configuration settings for color, scanning and other parameters directly through a browser application by connecting to the laser via LAN (W-LAN with a suitable access point). With this browser interface, it is no longer necessary to physically access the laser projector (that is probably mounted in several meter height). All configurations can be set remotely from any computer (PC, MAC, Linux), tablet or even mobile phone.

These units can optionally be operated through LAN, DMX, SD-card or auto mode as well. Even W-DMX and an optional remote pad are available on request.

* Scanner upgrade: CT-6210H, >[email protected]° ILDA, max. 80° (@35kpps) step response time (2° opt. step): 0.13msec.

Tech Specs

Need a comprehensive view?
Toggle the series comparison chart
Configuration info
Manufacturer
Series PIKO FULL SPECTRUM SERIES
Name PIKO RGB 11W
SKU 76401449999889
BEAM SPECS
Red Module
2.3 W 638 nm
Green Module
3 W 520nm
Blue Module
6.5 W 450nm
Manufacturer Stated Max Power 11.8W
Guaranteed Visible Power 10.8W
Full Angle Beam Divergence <1.5mrad
Beam Diameter 4mm
Color Output Full Color
Laser Source Diode
Laser Class 4
SCANNER SPECS
Scanner Type Galvo
Max Scanner Speed [email protected]°
Max Scan Angle 60°
GENERAL SPECS
Operation Modes Stand-Alone, ILDA, LAN, SD-card, Wireless DMX
Power Supply AC 110/220 V; 50Hz-60 Hz
Power Consumption 500W
Width 9.9in
Height 9.9in
Depth 10.5in
Weatherproofing Available
Accessories Power cable, Manual, Key, Patch cable; optional: detachable remote control pad
Compare every laser we offer in one place.
Click to download or print the PDF now!

COMPARISON CHART OF 00 PIKO FULL SPECTRUM SERIES

Model Price
PIKO RGB 11W
58.31
11.8W
10.8W
2.3W
3W
6.5W
638nm
520nm
450nm
4mm
4mm
4mm
<1.5mrad
<1.5mrad
<1.5mrad
Full Color
[email protected]°
60°
S, I, L, SD, WD
$16,990.00
PIKO RGB 18W
162.14
18.8W
17.2W
2.3W
2.5W
8W
6W
658nm
638nm
530nm
450nm
4mm
4mm
4mm
4mm
1.0mrad
1.0mrad
1.0mrad
1.0mrad
Full Color
[email protected]°
80°
S, I, L, SD, WD
$34,999.00
PIKO RGB 22W
200.58
23.1W
21W
2.3W
2.5W
8W
6W
4.3W
658nm
638nm
530nm
450nm
462nm
4mm
4mm
4mm
4mm
4mm
<1.0mrad
<1.0mrad
<1.0mrad
<1.0mrad
<1.0mrad
Full Color
[email protected]°
80°
S, I, L, SD, WD
$37,900.00
* Operation modes :
  • S : Stand-Alone
  • M : Music
  • D : DMX
  • I : ILDA
  • L : LAN
  • SD : SD-card
  • WD : Wireless DMX
  • T : Text Mode
  • C : Clock Mode
  • LCD : Rear Panel LCD Display
  • A : ArtNET
  • FB4 : Pangolin FB-MAX Ethernet
Intensity Over Distance
Laser Module Power
