NEO SIX RGB 2

Laser light beam array with 6 single RGB beam outlets with XY scan set and a guaranteed power of 1'800 mW.

Guaranteed Visible Power
1.8 W
Color Output
Full Color
Max Scanner Speed
45kpps @8°
Max Scan Angle
60 °

Included Safety Unit

Availability In stock, ready to ship

DELIVERING ANYWHERE
IN THE WORLD
888.769.5667 x3
toll free
Need help with the tech terms?

NEO SIX RGB 2

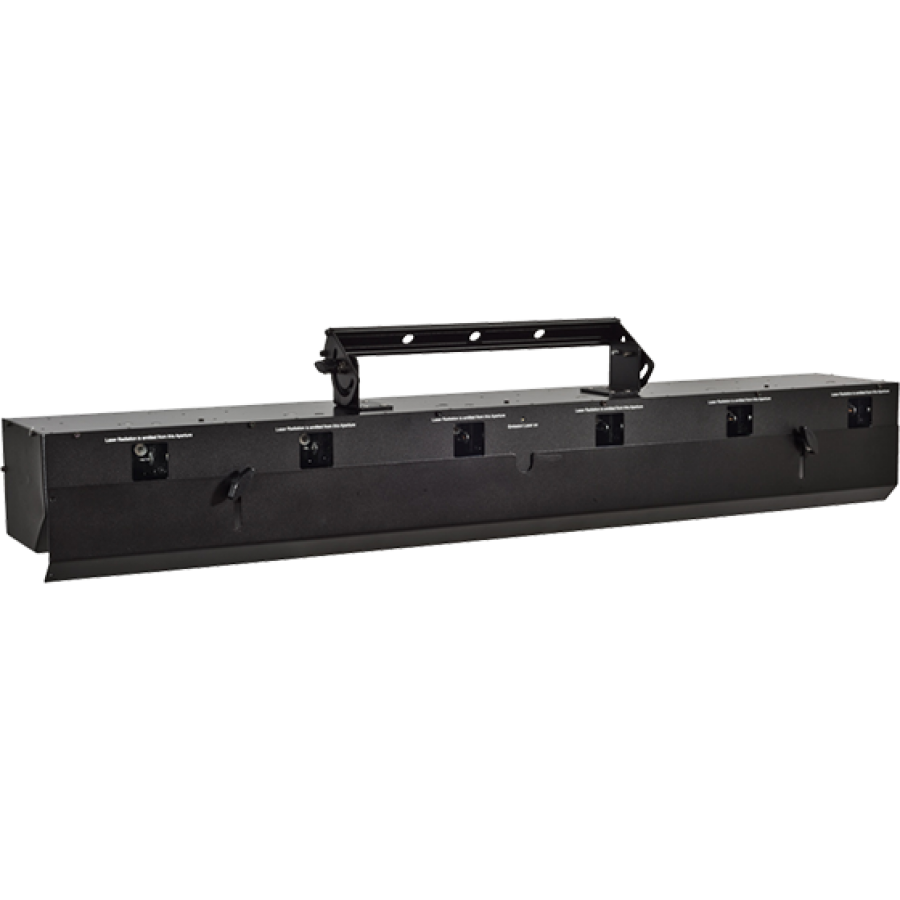

The Neo Six RGB 2 is a beam array with six RGB beam outlet which can be controlled through DMX.

The Neo Six RGB 2 is a beam array with six RGB beam outlet which can be controlled through DMX. Each beam output comes with its own XY scan set with 30 [email protected]°ILDA.

The Neo Six RGB 2 offers 10 standard preset patterns like a square, a circle, a triangle and others which can be displayed by all six laser outputs.


The Neo Six RGB 2 is equipped with 6 RGB laser diodes.

Each diode offers an equal power of 120 mW @ 638 nm red, 120 mW @ 520 nm green and 100 mW @ 450 nm blue for a brilliant white balance.

The Neo Six RGB 2 is controlled via DMX thus it is possible to create many different chaser, beam and fan laser light effects. Most important settings can also be adjusted via integrated display. The beam array can easily be integrated into an existing lighting setup.


A great visual effect for stages, live gigs, nightclubs, show productions and any event which requires a unique visual enhancement.

Tech Specs

Configuration info
Manufacturer
Series NEO SERIES
Name NEO SIX RGB 2
SKU 7640144993429
BEAM SPECS
Red Module
100 mW 638 nm
Green Module
100 mW 520nm
Blue Module
100 mW 450nm
Manufacturer Stated Max Power 300
Guaranteed Visible Power 1.8W
Full Angle Beam Divergence 0.7mrad
Beam Diameter 2mm
Color Output Full Color
SCANNER SPECS
Scanner Type Galvo
Max Scanner Speed [email protected]°
Max Scan Angle 60°
GENERAL SPECS
Operation Modes DMX, Rear Panel LCD Display
Built In Patterns 10
Power Supply AC 110/220 V; 50Hz-60 Hz
Power Consumption 360W
Width 39.4in
Height 6in
Depth 4.7in
Special Effect Laser Yes
Accessories Safety Unit
