Nano RYGCB 35W OPSL

The Powerful Nano RGB laser projector equipped with Coherent OPSL laser modules

Guaranteed Visible Power
30.5 W
Color Output
Full Color
Max Scanner Speed
60kpps @8°
Max Scan Angle
70 °

Included Power Cable, Manual, Patch Cable, Ilda Interlock Connector; Optional: Detachable Remote Control Pad, Key (for Key Switch), Manual Beam Block Panel

Availability In stock, ready to ship

DELIVERING ANYWHERE
IN THE WORLD
1-888-LASER-08
toll free
Need help with the tech terms?
OPTIONAL UPGRADES AVAILABLE
$198,000.00 ADD TO CART

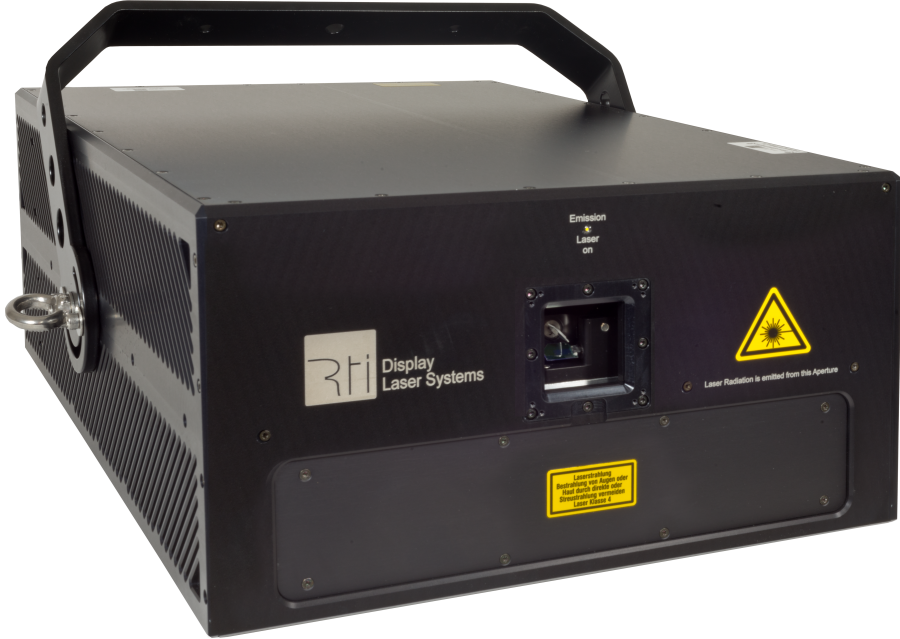

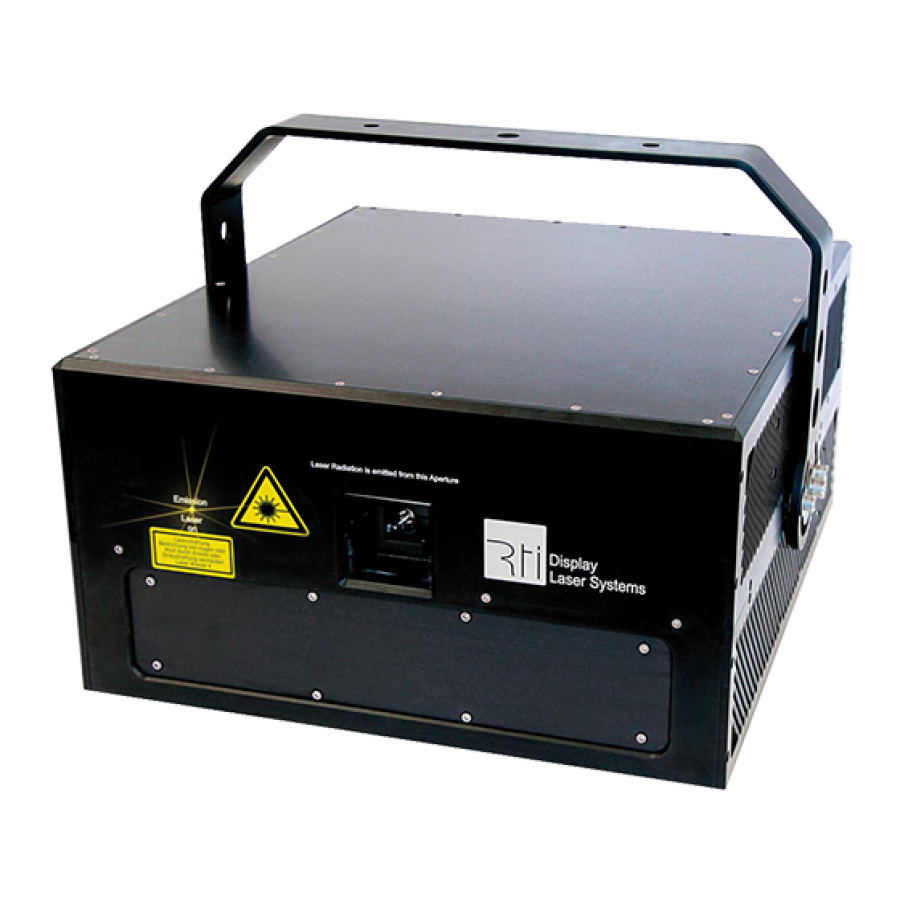

Nano RYGCB 35W OPSL

The Nano RYGCB 35W OPSL laser projector fulfills the highest requirement in terms of brightness, beam divergence and accuracy.

The Nano RYGCB 35W OPSL show laser projector fulfills the highest requirement in terms of brightness, beam divergence, and accuracy.

This RTI laser projector is equipped with highly sophisticated Coherent OPSL laser modules. The Nano RYGCB 35W OPSL has a beam diameter of 2.7mm and a beam divergence of ca. 1.0mrad.*

This results in an increased brightness compared to diode laser sources. The excellent beam specifications make this laser projector ideal for graphics projections and long distance projections but also for beam effects, which have to be seen over long distances.

The Nano RYGCB 35 OPSL has a guaranteed output power of 33W, with Full Color RYGCB modules (5W 639nm red, 5W 577nm yellow, 16W 530nm green, 5W 488nm cyan, 4W 460nm blue).

Possible custom configurations: up to 2 sources per color possible! Please ask us!

The compactly built laser system has a durable and waterproof housing according to IP65.

The Nano RYGCB 35 (OPSL) comes with CT-6210H scanners as a standard. The scan speed of [email protected]° ILDA and a maximum scan angle of 80° allow running the system at many various events.

This Nano projector is equipped with an ILDA interface for standard computer control and comes with an advanced mainboard control via a browser interface. It is possible to access the configuration settings for color, scanning and other parameters directly through a browser application by connecting to the laser via LAN (W-LAN with a suitable access point). With this browser interface, it is no longer necessary to physically access the laser projector (that is probably mounted in several meter height). All configurations can be set remotely from any computer (PC, MAC, Linux), tablet or even mobile phone.

In addition, it is possible to order optional control modes, like LAN, DMX, SD-card or auto mode. Even W-DMX and a detachable remote control pad are available on request.

The device can be equipped with CT-6215HB Big Boy Driver scanners and low divergence optics: [email protected]°ILDA, max. 80° (@30kpps); beam diameter of ca. 5.5mm and a beam divergence of only 0.6mm.

* depending on the collimators; information based on our recommended standard optics.

Tech Specs

Need a comprehensive view?
Toggle the series comparison chart
Configuration info
Manufacturer
Series NANO SERIES
Name Nano RYGCB 35W OPSL
SKU 7640144998301-1
BEAM SPECS
Red Module
5 W 639nm
Green Module
16 W 530nm
Blue Module
4 W 460nm
5 W 488nm
Yellow Module
5 W 577nm
Manufacturer Stated Max Power 35W
Guaranteed Visible Power 30.5W
Full Angle Beam Divergence 1mrad
Beam Diameter 2mm
Color Output Full Color
Laser Source Coherent Taipan OPSL
Laser Class 4
LASER RADIATION
AVOID EYE OR SKIN EXPOSURE TO DIRECT
OR SCATTERED RADIATION
SCANNER SPECS
Scanner Type Galvo
Max Scanner Speed [email protected]°
Max Scan Angle 70°
GENERAL SPECS
Operation Modes Stand-Alone, ILDA, LAN, SD-card, Wireless DMX
Power Supply 85-250 V AC 50/60 Hz
Power Consumption 1,200W
Width 30in
Height 15in
Depth 8in
Weatherproofing Available
Accessories Power cable, Manual, Patch cable, Ilda interlock connector; optional: detachable remote control pad, Key (for key switch), Manual beam block panel
Compare every laser we offer in one place.
Click to download or print the PDF now!

COMPARISON CHART OF NANO SERIES

Model Price
RTI Nano RGB 27 OPSL
220.93
29.5W
26W
8.5W
10W
5.5W
5.5W
638nm
520nm
450nm
462nm
5mm
5mm
5mm
5mm
0.95mrad
0.95mrad
0.95mrad
0.95mrad
Full Color
60°
S, I, L, SD
$49,500.00
RTI NANO RGB 30W
196.08
31.5W
27W
12W
7W
12.5W
638nm
520nm
450nm
6mm
6mm
6mm
0.95mrad
0.95mrad
0.95mrad
Full Color
60°
S, I, L, SD, WD
$45,600.00
RTI Nano RGB 30 OPSL
192.13
31.5W
28W
10W
10W
11.5W
638nm
530nm
450nm
6mm
6mm
6mm
1mrad
1mrad
1mrad
Full Color
50°
S, I, L, SD, WD
$54,900.00
RTI Nano RYGCB 35W OPSL
419.45
35W
30.5W
5W
16W
4W
5W
5W
639nm
530nm
488nm
460nm
577nm
2mm
2mm
2mm
2mm
2mm
1mrad
1mrad
1mrad
1mrad
1mrad
Full Color
70°
S, I, L, SD, WD
$198,000.00
RTI Nano RYGB 32 OPSL
297.41
38W
35W
12W
10W
6.5W
4.5W
5W
638nm
530nm
450nm
462nm
577nm
5mm
5mm
5mm
5mm
5mm
0.95mrad
0.95mrad
0.95mrad
0.95mrad
0.95mrad
Full Color
60°
S, I, L, SD
$68,400.00
RTI Nano RYGB 35 OPSL
481.34
38W
35W
12W
10W
6.5W
4.5W
5W
638nm
530nm
450nm
462nm
577nm
2mm
2mm
2mm
2mm
2mm
1mrad
1mrad
1mrad
1mrad
1mrad
Full Color
60°
S, I, L, SD, WD
$70,800.00
RTI Nano RGB 45
356.89
46.5W
42W
12W
14W
12.5W
8W
638nm
520nm
450nm
462nm
5mm
5mm
5mm
5mm
0.95mrad
0.95mrad
0.95mrad
0.95mrad
Full Color
60°
S, I, L, SD
$61,200.00
RTI Nano RGB 50 OPSL
382.38
52.5W
45W
12W
20W
12.5W
8W
638nm
530nm
450nm
462nm
5mm
5mm
5mm
5mm
0.95mrad
0.95mrad
0.95mrad
0.95mrad
Full Color
60°
S, I, L, SD
$81,600.00
* Operation modes :
  • ILDA over LAN : ILDA over LAN
  • Ethernet : Ethernet
  • S : Stand-Alone
  • M : Music
  • D : DMX
  • I : ILDA
  • L : LAN
  • SD : SD-card
  • WD : Wireless DMX
  • T : Text Mode
  • C : Clock Mode
  • LCD : Rear Panel LCD Display
  • A : ArtNET
  • FB4 : Pangolin FB-MAX Ethernet
Intensity Over Distance
Laser Module Power
Intensity Over Distance
Laser Module Power

Explore more options from the NANO SERIES
