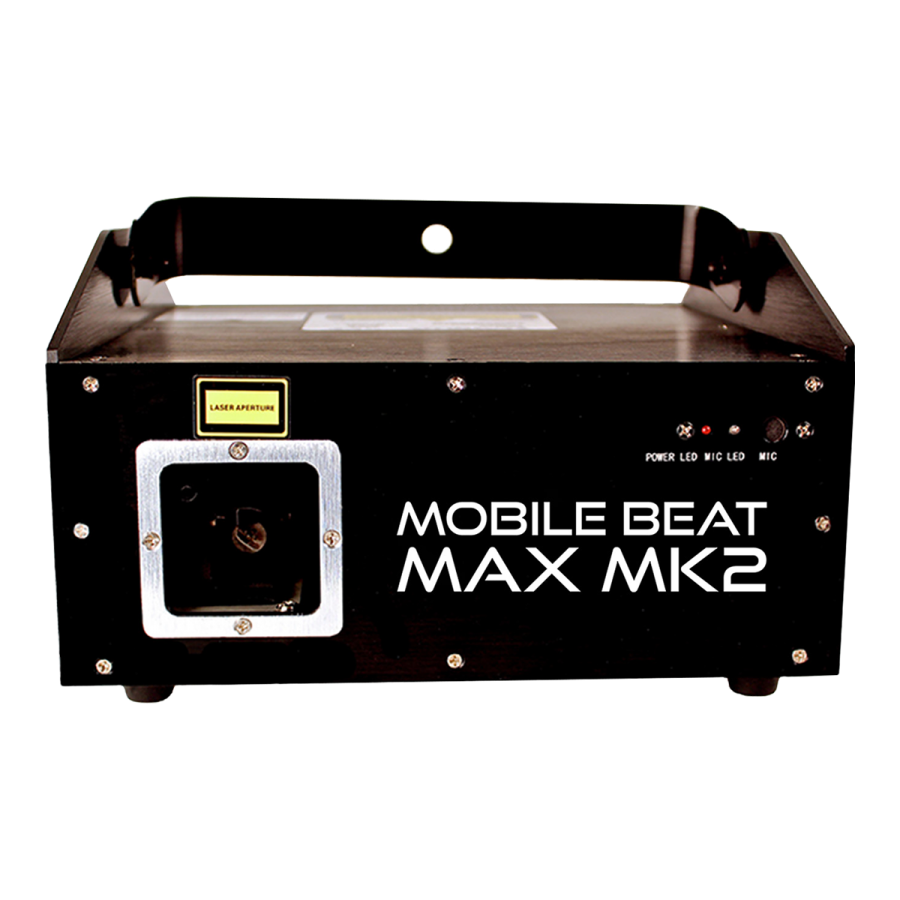

MOBILE BEAT MK2

The most popular Mobile Beat projector yet, the Mobile Beat MAX MK2 is the ideal entry-level entertainment laser

Guaranteed Visible Power
535 mW
Color Output
Full Color
Max Scanner Speed
25kpps @8°
Max Scan Angle
45 °

Included Power Cable, Beam Block Foil, User Manual, User Training DVD

Availability In stock, ready to ship

DELIVERING ANYWHERE
IN THE WORLD
888.769.5667 x3
toll free
Need help with the tech terms?

MOBILE BEAT MK2

The Mobile Beat MAX MK2 is perfect for mobile entertainers wanting slick aerial beams and precision graphics

New to the hugely popular line of X-Laser’s Mobile Beat projectors, the Mobile Beat MAX MK2 continues the evolution of our entry-level RGB and ILDA-compatible laser. The Mobile Beat MAX MK2 incorporates the best features and hardware from previous Mobile Beat lasers, by offering a vivid 1W of RGB brightness and precision graphics capabilities. You don’t need to choose between brightness and graphical precision anymore because, with superb color mixing and 25K scanners, the MAX MK2 produces full-color crowd-wowing aerial beam effects and sharp animations in huge sizes (up to 30’x30′) even in large event spaces.

  • Ideal for mobile entertainers who need a high-impact yet affordable laser solution
  • Field-serviceable optics allow for easy maintenance
  • Filtered air intakes keep the MAX MK2 cool and clean
  • Use the discounted Quickshow XL control software bundle to create custom designs and text
  • Precise and crisp low-divergence beams create beautiful laser show effects
  • Produces more than 1,000 colors with additive analog RGB color mixing (ILDA)
  • Sound Active and Automatic modes via DMX
  • Quality beam projections up to 100 feet
  • 26-point quality inspection before shipping
  • Eligible for the X-Laser EZ Variance Kit
  • Certified to comply with U.S. FDA standards as well as IEC, UL, ETC, CSA and ROHS guidelines
  • No-hassle 1-year warranty (6-mo. warranty on diodes)

Tech Specs

Need a comprehensive view?
Toggle the series comparison chart
Configuration info
Manufacturer
Series MOBILE BEAT SERIES
Name MOBILE BEAT MK2
SKU
BEAM SPECS
Red Module
150 mW 638 nm
Green Module
85 mW 532nm
Blue Module
300 mW 470nm
Manufacturer Stated Max Power 1W
Guaranteed Visible Power 535mW
Full Angle Beam Divergence 2mrad
Beam Diameter 4mm
Color Output Full Color
Laser Source Diode, DPSS
Laser Class 3B
SCANNER SPECS
Scanner Type Galvo
Max Scanner Speed [email protected]°
Max Scan Angle 45°
GENERAL SPECS
Operation Modes Stand-Alone, Music, DMX, ILDA
Venue Size 500people
Power Supply 110-230V, 50-60Hz
Power Consumption 240W
Width 11.25in
Height 6.25in
Depth 10.5in
Accessories Power cable, Beam Block Foil, User Manual, User Training DVD
Compare every laser we offer in one place.
Click to download or print the PDF now!

COMPARISON CHART OF 00 MOBILE BEAT SERIES

Model Price
MOBILE BEAT MK2
1.84
1W
535mW
150mW
85mW
300mW
638nm
532nm
470nm
4mm
4mm
4mm
2mrad
2mrad
2mrad
Full Color
[email protected]°
45°
S, M, D, I
500people
$1,299.00
MOBILE BEAT MIRAGE
2.14
400mW
400mW
180mW
110mW
110mW
638nm
520nm
450nm
4mm
4mm
4mm
1.5mrad
1.5mrad
1.5mrad
Full Color
[email protected]°
45°
S, D, I
$1,299.00
* Operation modes :
  • S : Stand-Alone
  • M : Music
  • D : DMX
  • I : ILDA
  • L : LAN
  • SD : SD-card
  • WD : Wireless DMX
  • T : Text Mode
  • C : Clock Mode
  • LCD : Rear Panel LCD Display
  • A : ArtNET
  • FB4 : Pangolin FB-MAX Ethernet
Intensity Over Distance
Laser Module Power

Explore more options from the MOBILE BEAT SERIES
