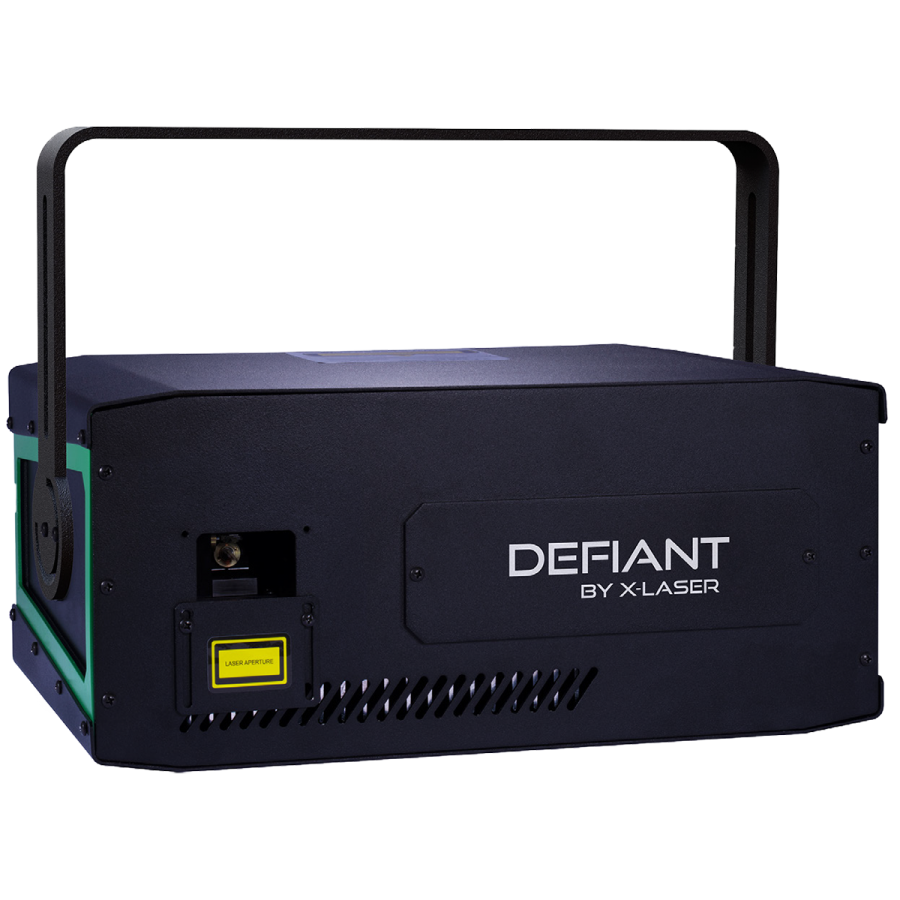

DEFIANT 3W

Our custom-built Defiant 3W laser is packed with the highest-quality components and are designed to let you unlock your creative freedom for any venue, audience or installation.

Guaranteed Visible Power
3.4 W
Color Output
Full Color
Max Scanner Speed
30kpps @8°
Max Scan Angle
60 °

Included PowerCON, Keys, User Manual, User Training DVD, Remote E-Stop Plug

Availability In stock, ready to ship

DELIVERING ANYWHERE
IN THE WORLD
1-888-LASER-08
toll free
Need help with the tech terms?

DEFIANT 3W

With a wide range of options available, from a fully weatherized housings to our unique Polaris audience scanning technology, Defiant lasers exceed expectations

Incorporating feedback from production partners who have toured with Defiant & Polaris across North America, South America, the UK and Europe, the third-generation Defiant has been completely redesigned and made more than 50 percent smaller to be able to travel anywhere with ease. Packed with the highest-quality components all designed to unlock your creative freedom, Defiant lasers stand a cut above while offering impressive value.

  • Fully customizable to specification up to 25W
  • LASORB ESD protected all-diode construction
  • Pangolin FB3 and FB4 compatible
  • Polaris audience scanning (PASS) upgradable
  • Proprietary GraphiX Scanning System
  • 50kHz analog color modulation
  • Guaranteed optical power levels (wattage)
  • IP65-rated sealed optical deck optional
  • PowerCON in/out powers up to 10 units
  • Field service access port for alignments
  • Gas-piston assisted service access hood
  • Reversible hanging brackets
  • Unique “centrifugal” fan cooling system
  • Buffered ILDA in/out with 1000ft max cable range
  • Fully weatherized options available
  • Custom-built by hand, made to order in the USA
  • EZ Variance and EZ Audience Scanning Variance Kit ready
  • X-Laser no-hassle warranty (2 years of hardware, 1 year on diodes)

Tech Specs

Need a comprehensive view?
Toggle the series comparison chart
Configuration info
Manufacturer
Series Defiant Series
Name DEFIANT 3W
SKU
BEAM SPECS
Red Module
1 W 637nm
Green Module
900 mW 520nm
Blue Module
1.5 W 445/447nm
Manufacturer Stated Max Power 3.4W
Guaranteed Visible Power 3.4W
Full Angle Beam Divergence 1.4mrad
Beam Diameter 5mm
Color Output Full Color
Laser Source Diode
Laser Class 4
LASER RADIATION
AVOID EYE OR SKIN EXPOSURE TO DIRECT
OR SCATTERED RADIATION
SCANNER SPECS
Scanner Type Galvo
Max Scanner Speed [email protected]°
Max Scan Angle 60°
GENERAL SPECS
Operation Modes DMX, ILDA, Pangolin FB-MAX Ethernet
Power Supply 110-230V, 50-60Hz, PowerCON I/O
Power Consumption 250W
Width 14.9in
Height 6.6in
Depth 14.2in
Accessories PowerCON, Keys, User Manual, User Training DVD, Remote E-Stop Plug
Compare every laser we offer in one place.
Click to download or print the PDF now!

COMPARISON CHART OF 00 DEFIANT SERIES

Model Price
DEFIANT 3W
17.63
3.4W
3.4W
1W
900mW
1.5W
637nm
520nm
445/447nm
5mm
5mm
5mm
1.4mrad
1.4mrad
1.4mrad
Full Color
[email protected]°
60°
D, I, FB4
$10,300.00
DEFIANT 6W
42.12
6.2W
5.3W
1.4W
1.8W
3W
637nm
520nm
445/447nm
5mm
5mm
5mm
1mrad
1mrad
1mrad
Full Color
[email protected]°
60°
D, I, FB4
$14,999.00
* Operation modes :
  • S : Stand-Alone
  • M : Music
  • D : DMX
  • I : ILDA
  • L : LAN
  • SD : SD-card
  • WD : Wireless DMX
  • T : Text Mode
  • C : Clock Mode
  • LCD : Rear Panel LCD Display
  • A : ArtNET
  • FB4 : Pangolin FB-MAX Ethernet
Intensity Over Distance
Laser Module Power

Explore more options from the Defiant Series
